Pedal Kit Installation Instructions

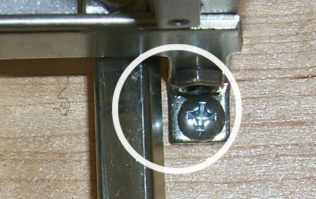

Using a Drill Driver, screw the bracket into the wood using the 2 panhead sheet metal screws (½" long). Be careful not to overtighten the screws!

NOTE:
If you choose to pre-drill a hole, use a 3/32" bit and make sure you use some type of STOP so you can NOT drill deeper than 3/8" (.375 in.) or 9.5 mm!!

If you have clutch on the drill driver, set it to one of the 2 lowest settings.
