Pedal Kit Installation Instructions

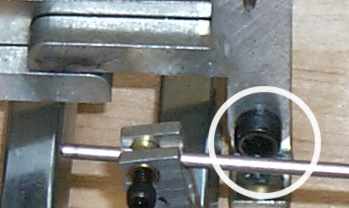

If you are using a reversing knee lever (one that moves to the right), attach the reversing mounting bar to the knee lever mounting bracket with the 10/32 socket screw. Make sure the reversing mounting bar moves easily, and then lock the mounting bar down with the 10-32 nut.
