Pedal Kit Installation Instructions

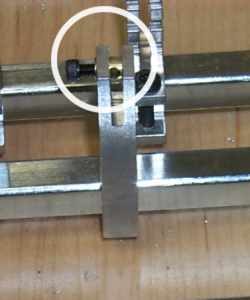

  • Attach the Special Cut pull bar to the knee lever cross-shaft.
  • Make SURE the openings are facing toward the knee lever if it is pushing the Special Cut pull bar or facing away from the knee lever if it is pulling the Special Cut pull bar.

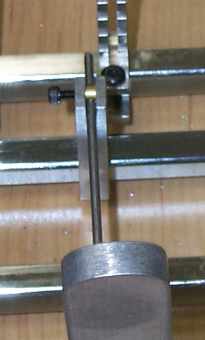

  • Insert the barrel nut into the Special Cut pull bar.
  • Insert the other end of the small rod through the barrel nut.
