Pedal Kit Installation Instructions


Select which of the following 2 options applies to you; then proceed with this step:

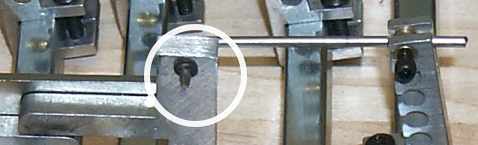

    1. Non-Reversing Knee Lever:   If you are using a non-reversing knee lever (one that moves to the left or vertically), insert the small end of the small rod with the 90 Degree bend into the hole in the knee lever mounting bar. Push the small circular retaining nut onto the rod, locking it to the knee lever mounting bar.
    2. Reversing Knee Lever:   If you are using a reversing knee lever (one that moves to the right), insert the small end of the small rod with the 90 Degree bend into the hole in the reversing mounting bar. Push the small circular retaining nut onto the rod, locking it to the reversing mounting bar.
